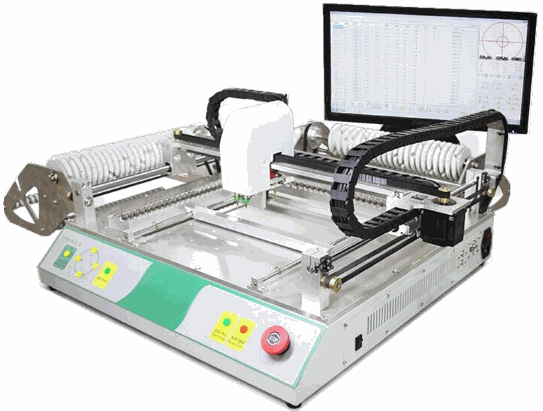

The SMTMATE 802B is a tabletop offline machine. It has two nozzles with a built-in compressor. It is a basic pick & place machine which is used in various organization/institution for R & D purpose. It has attached the Feeder chamber in the left & backside. It supports .csv format file to make a program. It has two cameras. One is the mark camera; it is used to find the component place in the PCB board. Another one is HD camera to identify and adjust the component position & check the angle.
|
SPECIFICATION
|
SMTMATE® 802B
|
|
Mounting head Quantity
|
2 |
|
Mounting accuracy
|
0.025mm
|
|
Mounting angle
|
0
～
360°
|
|
Max Mounting Capability
|
7000 PCS/H
|
|
Average Mounting Capability
|
5000 PCS/H
|
|
Drive Motor
|
Closed-loop Motor
|
|
Guide
|
Screw Guide
|
|
Nozzle type
|
Juki nozzle
|
|
Element for mounting
|
0402, 0603, 0805, 1206, SOT, SOP,TQFN,QFN, BGA
|
|
Substrate minimum size
|
20 x 20mm
|
|
Substrate maximum size
|
330 x 270mm
|
|
Substrate thickness
|
≤2mm
|
|
No. of Feeders
|
46 Nos |
|
8mm
|
38 Nos.
|
| 12mm |
6 Nos.
|
| 16mm |
2 No.
|
| PC System |
Windows 7
|
|
X, Y axis moving range
|
395*445mm
|
|
Z axis moving range
|
15mm
|
|
Z axis rotation angle
|
0-360°
|
|
Camera
|
2 HD CCD Camera
|
|
MAX Visual Capability
|
20*20mm
|
|
Compatible file format
|
.csv, & .txt format
|
|
Pressure
|
0.4 Mpa (Internal pump)
|
|
Storage
|
No |
|
Power
|
125 W
|
|
Power supply
|
AC220V±10
％
50Hz
|
|
Dimension
|
980 x 655 x 330mm
|
|
Weight
|
56kg |
