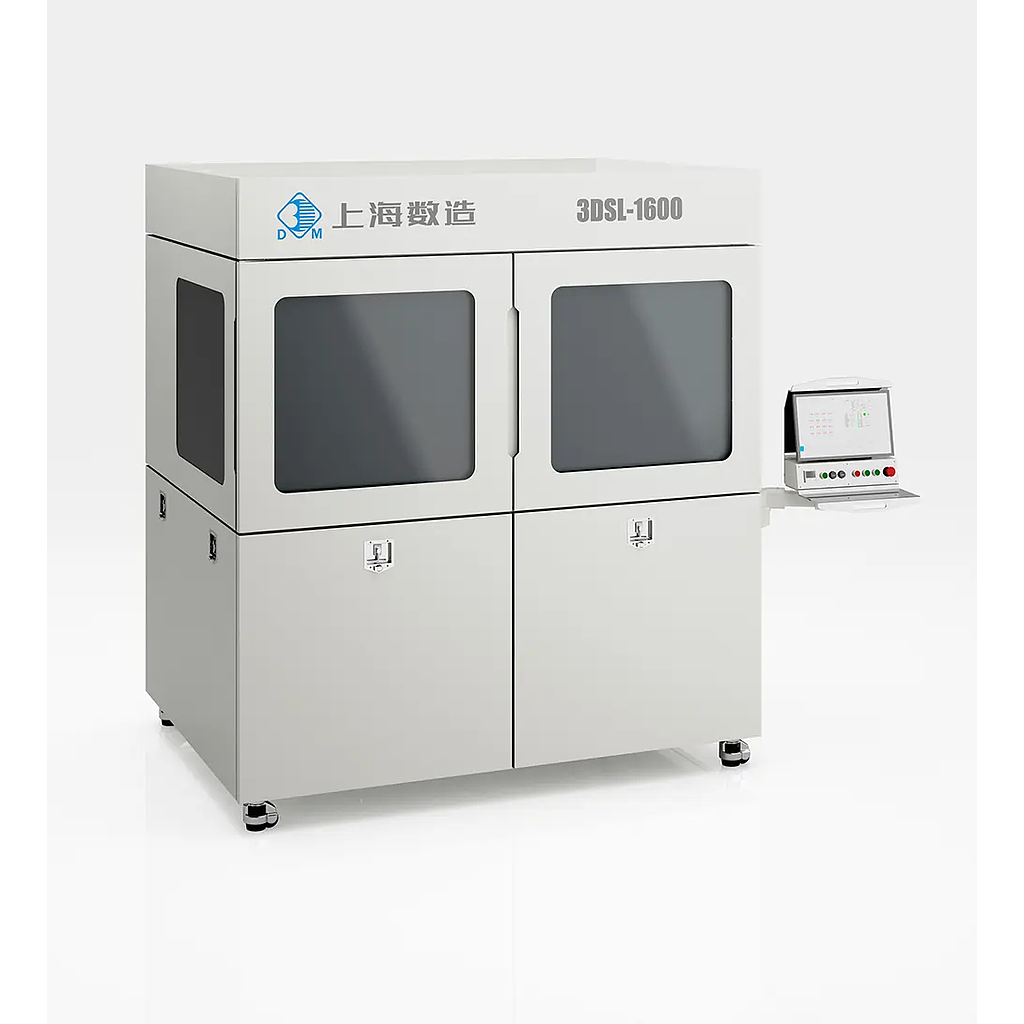

WIIBOOX 3DSL-1600 ULTRA-LARGE SLA 3D PRINTER

WIIBOOX 3DSL-1600 ULTRA-LARGE SLA 3D PRINTER

0.0 / 5

    This combination does not exist.


    Enquiry Now


    The WIIBOOX 3DSL-1600 is a top-tier SLA 3D printer with an ultra-large build volume, allowing for the creation of sizable models and prototypes. It features high-resolution resin printing for exceptional detail and accuracy. Advanced UV light technology ensures precise curing of the resin. The printer's sturdy frame guarantees stability during operation, and its intuitive interface simplifies the user experience, making it ideal for demanding professional applications

    1. Ultra-large build volume for extensive projects

    2. High-resolution resin printing for fine detail

    3. Advanced UV light technology for accurate curing

    4. Sturdy frame for enhanced stability

    5. Intuitive software and controls for ease of use

    6. Ideal for professional and industrial applications

    1. X/Y axis Build Size:1600mm×800mm

    2. Z-axis Build Size:550mm (Standard)

    3. Machine Size: About 2200mmx1500mmx2400mm  (screen not included)

    4. Starting Pack of Resin:1100KG (Initial vat 1050KG + 50KG)

    5. Printing Efficiency:150-800g/h

    6. Max. Build Weight: 150kg

    7. Endurance Weight:80kg

    8. Print Accuracy:±0.1mm (L≤100mm) or ±0.1%×L (L>100mm), Max.: 0.05mm

    9. Resin Heating Mode: Hot Air Heating

    10. Max. Scan Speed:15m/s

    11. Resin Vat: Fixed Resin Vat

    12. Supported Resin: White Resin, High-toughness Resin, Soft Resin, Transparent Resin, Heat  Resisting Resin, Moisture-proof Resin, etc.

    13. Laser Type: Double Diode-pumped Solid-state Lasers

    14. Wavelength: Double Diode-pumped Solid-state Lasers

    15. Wavelength:355nm

    16. Scanning Technology: Double Galvanometer Scanning

    17. Scan Type: Variable Light Spot

    18. Focusing Type: F-theta Lens

    19. Recoating Process: Intelligent Positioning Vacuum Recoating

    20. Recoating Thickness:0.03-0.25mm (Normal: 0.1mm; Precise: 0.03-0.1mm; Fast: 0.1-0.25mm）

    21. Operation System: Windows 7 x64

    22. Software Function: Automatic Generation of Scanning Paths, Liquid Level Monitoring & Compensation

    23. Network: Ethernet, TCP/IP

    24. Working Temperature:24-28℃

    1. Prototyping

    2. Industrial parts

    3. Architectural models

    4. Art and sculpture

    5. Medical devices

    6. Jewelry design.
