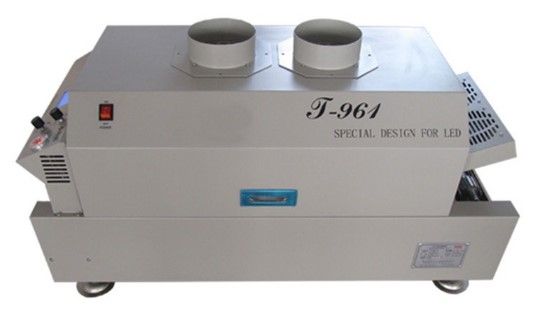

Reflow Oven T-961
Reflow Oven T-961
The T-961 machine selects the intelligent level sirocco and rapid infrared heating technology controlling, equipped with special design wind wheel, speed stability, and uniform temperature, suit for uninterrupted soldering the LED and BGA components. This machine is equipped with the crawler-type and five temperature area heating systems, and each temperature area uses independent PID controlling and up-down heating type, can make the inside temperature more accurate and well-proportioned, just take about 15 minutes can let it heat up to the working temperature from the room temperature.
|
SPECIFICATION
|
T-961
|
|
Heating zone quantity
|
Upper3 / D
own3
|
|
Length of the heating zone
|
730
X 230 mm
|
|
Heating type
|
Intelligent
level sirocco and rapid infrared heating
|
|
Cooling zone quantity
|
1 |
|
Maximum width of PCB board
|
230
mm
|
|
Operation direction
|
Left
→ Right
|
|
Delivery option
|
Net
transmission
＋
chain transmission
|
|
Speed of conveyer belt
|
0-290mm/min
|
|
Power supply
|
220V
50/60Hz
|
|
Peak power
|
3.5KW
|
|
Heating up time
|
Around 7mins
|
|
Temperature control range
|
Room
temperature
～
300
℃
|
|
Temperature control mode
|
PID
closed-loop control
|
|
Temperature control accuracy
|
±1
℃
|
|
PCB temperature distribution deviation
|
±2
℃
|
|
Overall dimension
|
1000×466×445mm
|
|
Machine weight
|
70KG
|
