PCBMATE® – AUTO

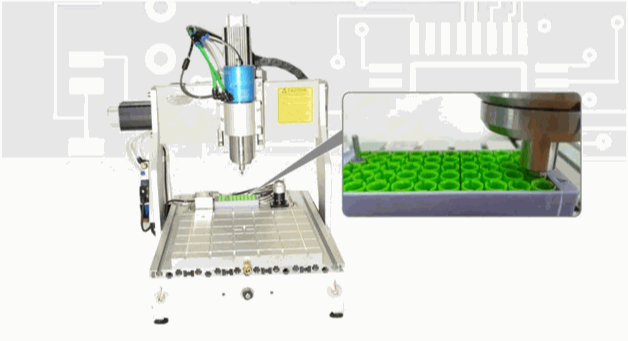

                 The PCBMATE AUTO Prototype &Antenna fabrication machine is used to make a prototype PCB board with 49 tool change block. This Spindle DC-60 is a High Precision and High-Speed Spindle with a hydraulic tool pick and drop option. We can make Engraving, Hatching, Milling, Drilling, and Cutting. We have to connect the external compressor to pick the tool. It's available in two various communication modes like Parallel port / USB mode. This machine is controlled by a CNC controller with Mach3 CNC software. Its working area is 400x300x100 mm. Its resolution is 3.125 Micrometers.


Enquiry Now



SPECIFICATION
ETS – PCBMATE® – AUTO
PCB Prototyping & Antenna fabrication System
Auto
Software
Copper CAM & Mach3 Mill
Resolution (X/Y)
3.125 Micro Meter
Working Area (X/Y/Z)(mm)
400x300x100
Auto Tool change
49  Pcs
Minimum Width Line & Space in  mm
0.1 (4 mil)
Max Travel Speed (mm/sec)
58 (2.28 “)
Drilling (mm)
0.2 -3.175 (8-125 mil)
Maximum Drilling Cycles/ Min
50
Main Axle Power Rate
800 W
Main Axle Rotating Speed
60000 RPM
Max working speed
3500mm/min
Feeding Height
150 mm
Working drive
0.02-0.05mm
Repositioning accuracy
0.01-0.02mm
Supported format
Standard Gerber,DXF,Excellon
Capability of Processing various materials
FR4, Copper clad, Acrylic, Metal, Aluminum and etc.,
Power
220 V AC
Weight
60 Kg
