STENCIL PRINTER YX5070
STENCIL PRINTER YX5070

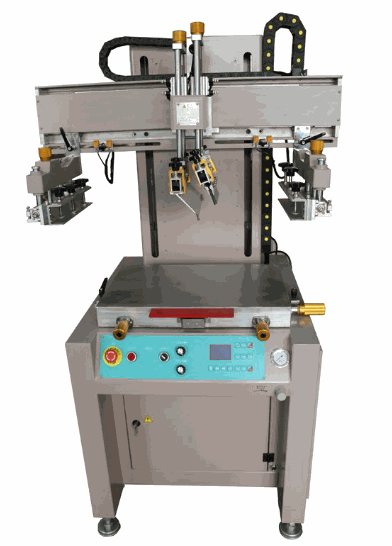

Stencil printer YX5070 is a semi-automatic printer that is used to depositing the solder paste on the PCB board. Its stencil frame size is 600 x 800mm.Its total dimension is 1200 x 1000 x 1750mm.We have to connect an external compressor to operate this. Its power supply rating is 230v AC/50 Hz.
| SPECIFICATION | STENCIL PRINTER - YX5070 |
|
Print-table size
|
400X600mm
|
|
Frame size
|
600X800mm
|
|
Substrate size
|
500X700mm
|
|
Substrate thickness
|
80mm
|
|
Positioning
|
PCB Outer Or Pin
Positioning
|
|
Minimum adjustment
|
Front/Back±10mm
R/L±10mm
|
|
Printing accuracy
|
±0.02mm
|
|
Repeated accuracy
|
±0.05mm
|
|
Minimum distance
|
0.25mm
|
|
Air pressure
|
4-6Kgf/Cm2
|
|
Power
|
110V/220V 50Hz/60Hz
|
|
Overall Size
|
1200X1000X1750 mm
|
|
Weight
|
400kg |
