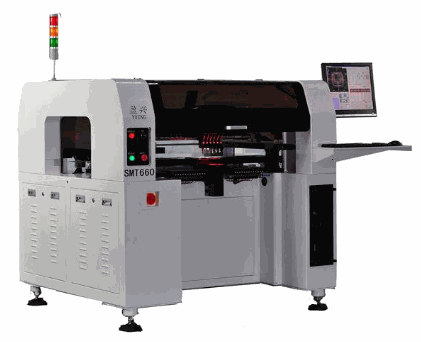

The SMTMATE 660 is an inline machine. It has six nozzles with conveyors. This machine is suitable to make the SMT line. The compressor has to connect within the external. It has a widely adjustable conveyor for a place of various sizes of the board. We have to attach 64 no of feeders in this machine. It has support 8mm,12mm,16mm,24mm feeders, vibrator feeder & IC tray. It support .csv / .txt format file for make a program.It has easy access to GUI software. It has eight cameras. One is the mark camera; it is used to find the component place on the PCB board. Another one is an HD camera to adjust the component angle. Then it has six HSPD cameras to identify the RLC components.
|
SPECIFICATION
|
SMTMATE® 660
|
|
Mounting head Quantity
|
6 |
|
Maximum Circuit Board Area
|
600 × 455mm
|
|
Maximum Movement Range of Z Axis
|
20 mm
|
|
Mounting accuracy
|
0.01 mm
|
|
Mounting angle
|
0 -360°
|
|
Buffering Range of Suction Nozzle
|
4.5mm
|
|
Max Mounting Capability
|
12,000 PCS/hour
|
|
Average Mounting Capability
|
9,600 PCS/hour
|
|
Drive Motor
|
Panasonic high-speed DSP drive
|
|
Guide Rail
|
Ball Screw
|
|
Nozzle type
|
Juki
|
|
Element for mounting
|
0201, 0402, 0603, 0805, 1206, SOT, SOD, SOP,
SSOP, QFN, VCQFN, BGA
|
|
No. of Feeders
|
64 Nos |
|
Camera
|
8 Mark Camera – 1 HSPD – 6 HD - 1 |
|
Maximum Chip Size
|
40*40 mm
|
|
Pin spacing
|
>0.3mm
|
|
Visual Display
|
17 inches color HD display
|
|
Minimum Pin Spacing
|
0.5 mm
|
|
Feeder
|
Pneumatic Feeder 8, 12, 16, 24 mm. Vibrator Feeder. Electrical Feeder
|
|
PC System
|
Windows 7
|
|
Compatible file format
|
.csv or .txt
|
|
Compressed Air
|
0.5-0.7 Mpa
|
|
Power
|
500 Watts
|
|
Power supply
|
230V / 50 Hz, 110V / 60 Hz
|
|
Dimension
|
1450 x 1370 x 1550mm
|
|
Weight
|
500 KG |
