SMTMATE® 550
SMTMATE® 550

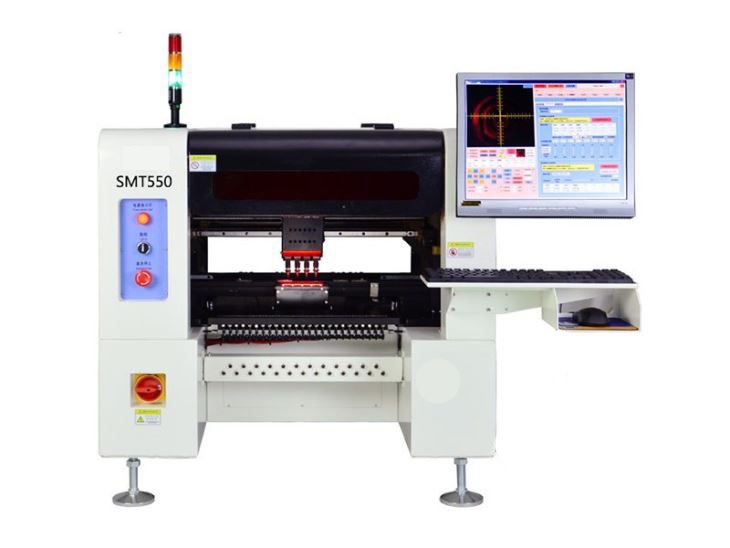

The SMTMATE 550 is an inline machine. It has four nozzles with conveyors.This machine is suitable to make the SMT line. Compressor has to connect within external. It has a widely adjustable conveyor for a place with various sizes of the board. We have to attach 50 no of feeder in this machine. It has support 8mm,12mm,16mm,24mm feeder, vibrator feeder & IC tray.It support .csv / .txt format file for make a program.It has easily access GUI software. It has six cameras. One is the mark camera; it is used to find the component placement on the PCB board. Another one is HD camera to adjust the component angle. Then it has four HSPD cameras to identify the RLC components.
|
SPECIFICATION
|
SMTMATE® 550
|
|
Mounting head Quantity
|
4
|
|
Maximum Circuit Board Area
|
350 x 190 mm
|
|
Maximum Movement Range of Z Axis
|
20 mm
|
|
Mounting accuracy
|
0.01 mm
|
|
Mounting angle
|
0 -360°
|
|
Buffering Range of Suction Nozzle
|
4.5mm
|
|
Max Mounting Capability
|
9,500 PCS/hour
|
|
Average Mounting Capability
|
8,000 PCS/hour
|
|
Drive Motor
|
Closed loop stepper
motor (Panasonic Servo Motor-Optional)
|
|
Guide Rail
|
Ball Screw
|
|
Nozzle type
|
Juki
|
|
Element for mounting
|
0201, 0402, 0603, 0805, 1206, SOT, SOD, SOP,
SSOP, QFN, VCQFN, BGA
|
|
No. of Feeders
|
50 |
|
Camera |
6 Mark Camera – 1 HSPD – 4 HD - 1 |
|
Maximum Chip Size
|
40*40 mm
|
|
Pin spacing
|
>0.3mm
|
|
Visual Display
|
17 inches color HD display
|
|
Minimum Pin Spacing
|
0.5 mm
|
|
Feeder
|
Pneumatic Feeder 8, 12, 16, 24 mm. Vibrator Feeder. Electrical Feeder
|
|
PC System
|
Windows 7
|
|
Compatible file format
|
.csv or .txt
|
|
Compressed Air
|
0.5-0.7 Mpa
|
|
Power
|
400
Watts
|
|
Power supply
|
230V / 50 Hz, 110V / 60 Hz
|
|
Dimension
|
900 × 1140 × 900mm
|
|
Weight
|
210KG |
