Reeyee DS7 - Handheld Blue Laser 3D Scanner -

Reeyee DS7 - Handheld Blue Laser 3D Scanner -

0.0 / 5

    This combination does not exist.


    Enquiry Now

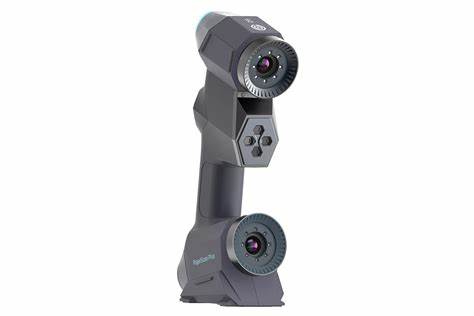

    The Reeyee DS7 Handheld Blue Laser 3D Scanner offers high precision with its advanced blue laser technology, capturing detailed 3D scans. Its portable design ensures easy use in various environments, while real-time visualization allows for immediate feedback. Ideal for diverse applications, it combines accuracy with user-friendly operation.

    1. Scanning head weight<650g

    2. Water – proof flight case

    3. Blue laser light

    4. Foldaway calibration board

    5. Large single scanning frame

    6. Guided operation process

    7. Support fraction scanning

    8.Support multiple data output formats

    1. Model: Reeyee DS7

    2. Scanning Mode: Multi-line scanning, single line scanning

    3. Scanning Accuracy: Up to 0.02mm

    4. Volumetric Accuracy: 650,000 points/s

    5. Suggested Working Distance: 500mm

    6. Max.Depth of field : 300mm-700mm

    7. Max.Single Scanning Area: 510mm * 520mm

    8. Dot Distance: 0.05mm-3mm

    9. Light Source: 14 lines + 1 line of blue laser light

    10. Classification of light: Class 2M (Human eye safe)

    11. Connectivity: USB 3.0

    12. Product Measurement: 298mm * 90mm * 74.5mm

    13. Product Weight:670g

    14. Power: 12V, 5.0A

    15. Working Temperature: 0-40℃

    16. Certificates : CE, ROHS

    17. Operating Temperature: -20~40℃

    18. Suggested Computer Configuration

    System: Win10, 64 bit; Video Card: NVIDIA GTX1080 or up; Video Memory: ≥4G; CPU: I7-8700 or up; Memory: ≥32GB

    1. Automobile industry

    2. Transportation and aviation industry

    3. Aerospace industry, mold inspection industry

    4. Energy manufacturing industry

    5. Machinery manufacturing industry and many other industries.
