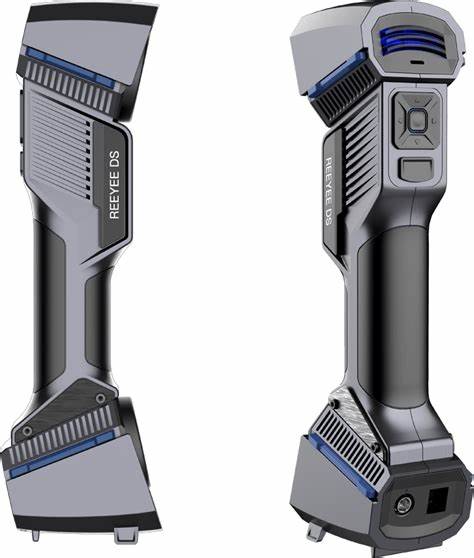

Reeyee DS11- Handheld Blue Laser 3D Scanner
The Reeyee DS11 Handheld Blue Laser 3D Scanner delivers high-resolution, precise 3D scanning using blue laser technology. Its ergonomic design supports easy, portable scanning, and real-time data visualization enhances workflow efficiency. Ideal for industrial inspections, reverse engineering, and complex modeling, it combines accuracy with user-friendly features for versatile applications.
1. Scanning head weight<650g
2. Water – proof flight case
3. Blue laser light
4. Foldaway calibration board
5. Large single-scanning frame
6. Guided operation process
7. Support fraction scanning
8. Support multiple data output formats
1. Model: Reeyee DS11
2. Scanning Mode: Multi-line scanning, single-line scanning
3. Scanning Accuracy: Up to 0.02mm
4. Volumetric Accuracy: 1,02,0000 points/s
5. Suggested Working Distance: 500mm
6. Max.Depth of field: 300mm-700mm
7. Max.Single Scanning Area: 510mm * 520mm
8. Dot Distance: 0.05mm-3mm
9. Light Source: 22 lines + 1 line of blue laser light
10. Classification of light: Class 2M (Human eye safe)
11. Connectivity: USB 3.0
12. Product Measurement: 298mm * 90mm * 74.5mm
13. Product Weight:670g
14. Power: 12V, 5.0A
15. Working Temperature: 0-40℃
16. Certificates: CE, ROHS
17. Operating Temperature: -20~40℃
18. Suggested Computer Configuration
System: Win10, 64 bit; Video Card: NVIDIA GTX1080 or up; Video Memory: ≥4G; CPU: I7-8700 or up; Memory: ≥32GB
1. Automobile industry
2. Transportation and aviation industry
3. Aerospace industry, mold inspection industry
4. Energy manufacturing industry
5. Machinery manufacturing industry and many other industries.
