Reeyee 5M - Industrial-Grade 3D Optical Scan

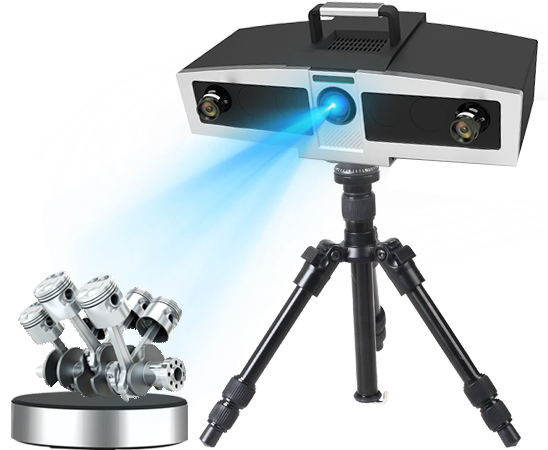

The Wiiboox Reeyee 3M 3D Scanner, featuring industrial-grade blue light non-contact scanning technology, allows for the precise scanning of a wide range of complex objects. It effectively reduces interference from ambient light, making it suitable even for dark-colored or metallic surfaces. The adjustable scan head provides the flexibility to accommodate large components with ease. Capable of supporting up to 100 million data points, the scanner delivers fast results, with each scan taking less than 2 seconds.
1. Single Scan Accuracy: 0.005mm～0.015mm
2. Volume Accuracy: 0.08 mm/m
3. Single Scan Speed: < 1.5 s
4. Point Distance: 0.04mm~0.16mm
5. Single Scan Range : 100×75 mm ~ 400x300 mm
6. Scan Depth:100-400 mm
7. Camera Resoluction: 5.0 MPx2
8. Light Source: Blue light ( LED )
9. Scan Type: Non-contact structure light scanning
10. Alignment: Markers auto-alignment /manual alignment
11. Output Data Format: ASC, STL, ETC
12. PC Configuration Requirement: CPU: Intel core i7 3770 or better
Display card: NVIDIA GeForce GT 670 or better
Installation Memory: recommended 32G or better
Mechanical Memory: recommended 1T or better
13. OS System Support: Win7 64bit Ultimate / Win10 64bit
14. Operation Temperature: 0 - 45 C
1. Blue Light Scanning Technology
2. Super- large Scan Ranges
3. Super- High Scan Accuracy
4. Fast Scan Speed
5. Wide Application Fields
1. Automobile Transportation
2. Mold Check
3. Consumer Electronics
4. Preservation of Cultural Relics
5. Industrial Manufacturing
6. Reverse Engineering
