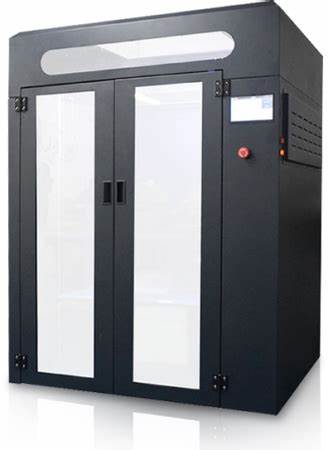

Large Scale 3D Printer- W600

Large Scale 3D Printer- W600

0.0 / 5

    This combination does not exist.


    Enquiry Now


    The Large Scale 3D Printer W600 integrates closed-loop control technology to prevent step loss, ensuring smooth operation. It features a dual-axis guide module for precise movement, a high-power silicone heat bed for optimal adhesion and reduced warping, and a four-screw linkage mechanism for stable and accurate print quality. This combination enhances reliability and performance in large-scale printing tasks.

    1. Industrial-grade servo motor

    2. Dual- axis guide module

    3. High-power silicon heat bed

    4. 7” LCD display

    5. 4- Screw linkage mechanism

    6. Closed-loop control technology

    1. Build Volume:600*600*1000mm

    2. Modeling Technology: FDM (Fused Deposition Modeling)

    3. Layer Resolution:0.05-0.3mm

    4. Positioning Accuracy:≤0.0125mm

    5. Power Off Resume: Yes

    6. Quantity of Nozzle:1

    7. Printing Speed:30-150mm/s

    8. Nozzle Diameter:0.4mm

    9. Max Extruder Temp:260℃

    10. Platform Temp:120℃

    11. Display Screen:7 inch Color Touch Screen

    12. Work Mode: Online or Offline (SD Card/USB)

    13. Power Supply: AC 100-240V/ 50-60Hz

    14. Operating System: Windows, Linux, Mac OS

    15. File Format:STL, OBJ, Gcode

    16. Working Temp:0℃-40℃

    17. Filament Diameter:1.75mm

    18. Recommended Filament: PLA, ABS, TPU, PETG, Copper PLA, Wood PLA, etc

    19. Smart Functions: Automatic Leveling; Filament Absence Warning;  Power Failure Recovery

    1. Industrial Prototyping

    2. Art and Design

    3. Medical Applications

    4. Aerospace Components
