Industrial-Grade SLA 3D Printer-3DSL600

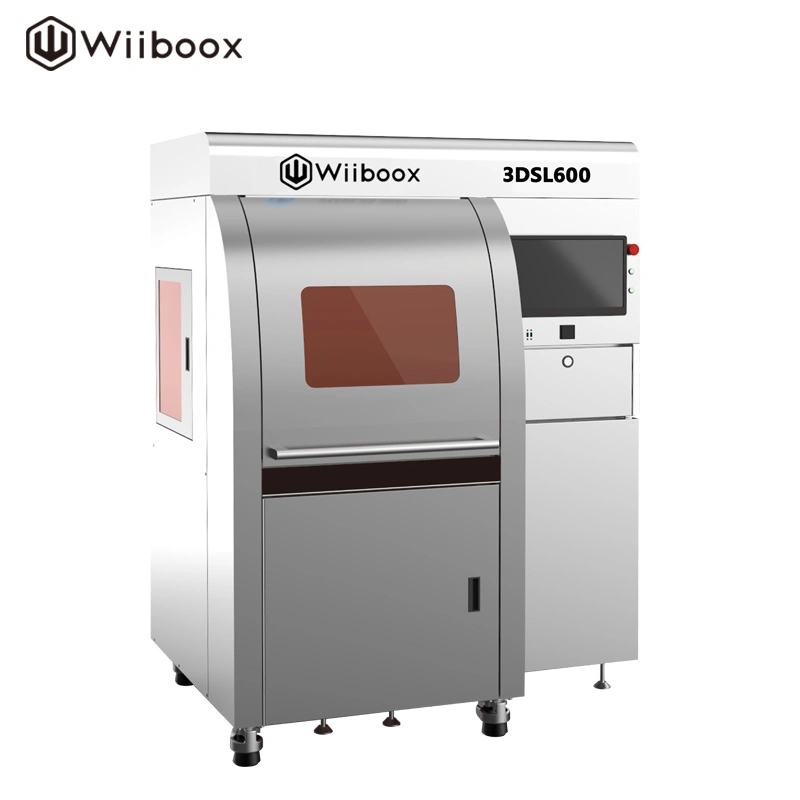

The 3DSL600 Industrial-Grade SLA 3D Printer offers exceptional precision and a large build volume, ideal for high-detail prototypes and production parts. It supports advanced photopolymer resins and features robust automation for efficient operation. Designed for heavy-duty use, it ensures consistent, high-quality results in industrial settings
1. High Precision, High-resolution Output
2. Intelligent operation Simple & Convenient
3. Replaceable Resin Bracket
4. Long Storage of Resin
5. Lifting – type Resin Bracket
6. Scraper with Non-beam Structure
7. Vacuum Adsorption System
8. Hot Air Heating
1. Printing Technology: SLA
2.X/Y axis Build Size: 600mm×600mm
3. Z-axis Build Size:400mm (Standard)
4. Machine Size:1700mm×1250mm×2000mm
5. Machine Weight: 1050kg (including full starting pack of resin)
6. Starting Pack of Resin: 240KG (Initial vat 65KG+5KG)
7. Printing Efficiency: 80-400g/h
8. Max. Build Weight: 80kg
9. Endurance Weight: 13kg
10. Print Accuracy: ±0.1mm (L≤100mm) or ±0.1%×L (L>100mm), Max.: 0.05mm
11. Resin Heating Mode: Hot Air Heating
12. Max. Scan Speed:10m/s
13. Supported Resin: Normal Resin, High-toughness Resin, Transparent Resin, Heat Resisting Resin, etc
14. Laser Type: Diode-pumped Solid-state Laser
15. Wavelength: 355nm
16. Scanning Technology: Galvanometer Scanning
17. Scan Type: Variable Light Spot
18. Focusing Type: F-theta Lens
19. Recoating Process: Intelligent Positioning Vacuum Recoating
20. Recoating Thickness:0.03-0.25mm (Normal: 0.1mm; Precise: 0.03-0.1mm; Fast: 0.1-0.25mm）
21.Accuracy:0.001mm
22. Operation System: Windows 7 x64
23. Software Function: Automatic Generation of Scanning Paths, Liquid Level Monitoring & Compensation
1. Hand Molds
2. Auto Parts
3. Packaging Design
4. Art Design
5. Medical
6. Educational
