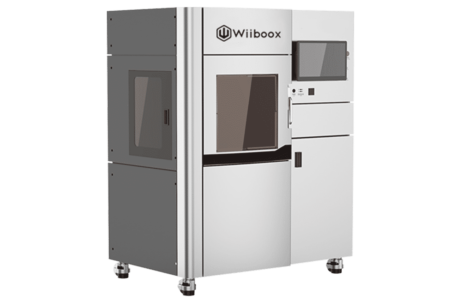

Industrial-Grade SLA 3D Printer- 3DSL360
The 3DSL360 Industrial-Grade SLA 3D Printer delivers high precision and large build volumes for demanding applications. It excels in detailed prototyping and production with advanced photopolymer resins. Designed for durability and continuous use, it features automated processes and integrates with sophisticated software for optimal results.
1. High Precision, High-resolution Output
2. Intelligent operation Simple & Convenient
3. Replaceable Resin Bracket
4. Long Storage of Resin
5. Lifting – type Resin Bracket
6. Scraper with Non-beam Structure
7. Vacuum Adsorption System
8. Hot Air Heating
1. Printing Technology:SLA
2. X/Y axis Build Size:360mm×360mm
3. Z axis Build Size:300mm (Standard)
4. Machine Size:1210mm×920mm×1780mm
5. Machine Weight:850kg (including full starting pack of resin)
6. Starting Pack of Resin:70KG (Initial vat 65KG+5KG)
7. Printing Efficiency:80-260g/h
8. Max. Build Weight:40kg
9. Endurance Weight:6kg
10. Print Accuracy:±0.1mm (L≤100mm) or ±0.1%×L (L>100mm), Max.: 0.05mm
11. Resin Heating Mode:Hot Air Heating
12. Max. Scan Speed:10m/s
13. Supported Resin:Normal Resin, High-toughness Resin, Transparent Resin, Heat Resisting Resin, etc
14. Laser Type:Diode-pumped Solid-state Laser
15. Wavelength:355nm
16. Scanning Technology:Galvanometer Scanning
17. Scan Type:Variable Light Spot
18. Focusing Type:F-theta Lens
19. Recoating Process:Intelligent Positioning Vacuum Recoating
20. Recoating Thickness:0.03-0.25mm (Normal: 0.1mm; Precise: 0.03-0.1mm; Fast: 0.1-0.25mm）
21. Accuracy:0.001mm
22. Operation System:Windows 7 x64
23. Software Function:Automatic Generation of Scanning Paths, Liquid Level Monitoring & Compensation
1. Hand Molds
2. Auto Parts
3. Packaging Design
4. Art Design
5. Medical
6. Educational
