ETS-thingZkit®-Nano

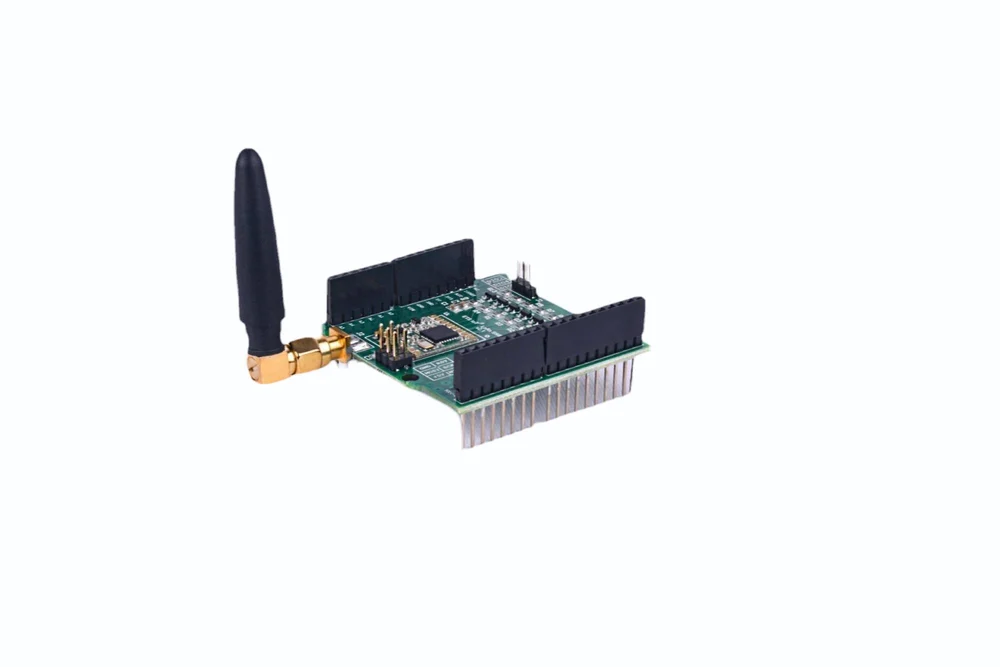

thingZkit®-Nano board is a long-range transceiver on an Arduino shield form factor based on the Open Overview source library. The Shield allows users to send data and reach extremely long ranges at low data rates. It provides ultra-long-range spread spectrum communication and high interference immunity while minimizing current consumption.
1. Semtech SX1276 LoRa® IC
2. LoRa® Expansion board direct Compatible with Arduino Uno
3. Interface with Arduino Uno
4. Suitable for LoRaWAN® or Peer to Peer LoRa® Protocol
5. Compatible with 3.3V or 5V GPIO Pin Arduino Board
6. Frequency Band: IN865
7. Low power consumption
8. External Antenna via SMA Female connector
9. Open-Source LMIC Library
10. LoRaWAN® Class A Support
11. LoRaWAN® Activation Mode Support: ABP & OTAA
1. 168 dB maximum link budget
2. +20 dBm – 100 mW constant RF output at 3.3V Supply
3. +14 dBm high efficiency
4. Programmable bit rate up to 300 kbps
5. High sensitivity: down to -148 dBm
6. Bullet-proof front end: IIP3 = -12.5 dBm
7. Excellent blocking immunity
8. Low RX current of 10.3 mA, 200nA register retention
9. Fully integrated synthesizer with a resolution of 61 Hz
10. FSK, GFSK, MSK, GMSK, LoRa and OOK modulation
11. Built-in bit synchronizer for clock recovery
12. Preamble detection
13. 127 dB Dynamic Range RSSI
14. Automatic RF Sense and CAD with ultra-fast AFC
15. Packet engine up to 256 bytes with CRC
1. LoRa Shield for Arduino
2. 1dbi external LoRa Antenna for 865MHz
