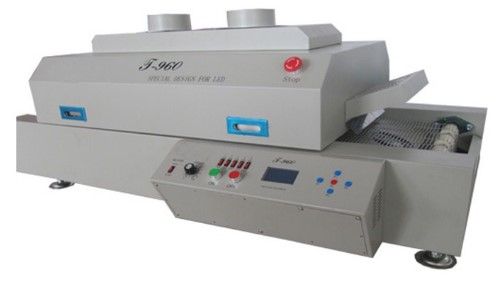

Reflow Oven T-960
Reflow Oven T-960
The T-960 machine selects the intelligent level sirocco and rapid infrared heating technology controlling, equipped with special design wind wheel, speed stability, and uniform temperature, suit for uninterrupted soldering the LED and BGA components. This machine is equipped with the crawler-type and five temperature area heating systems, and each temperature area uses independent PID controlling and up-down heating type, can make the inside temperature more accurate and well-proportioned, just take about 15 minutes can let it heat up to the working temperature from the room temperature.
|
SPECIFICATION
|
T-960
|
|
Heating zone quantity
|
Upper3 / Down2
|
|
Length of the heating zone
|
960 X 300 mm
|
|
Heating type
|
Intelligent level sirocco and rapid infrared
heating
|
|
Cooling zone quantity
|
1 |
|
Maximum width of PCB board
|
300 mm
|
|
Operation direction
|
Left → Right
|
|
Delivery option
|
Net transmission
＋
chain transmission
|
|
Speed of conveyer belt
|
0-1600mm/min
|
|
Power supply
|
Three phase 5 line 380V/220V 50/60Hz
|
|
Peak power
|
4.5KW
|
|
Heating up time
|
Around 15mins
|
|
Temperature control range
|
Room temperature
～
300
℃
|
|
Temperature control mode
|
PID closed-loop control
|
|
Temperature control accuracy
|
±3
℃
|
|
PCB temperature distribution deviation
|
±2
℃
|
|
Overall dimension
|
1450×630×470
|
|
Machine weight
|
90KG |
