PCBMATE® - 300W
PCBMATE® - 300W

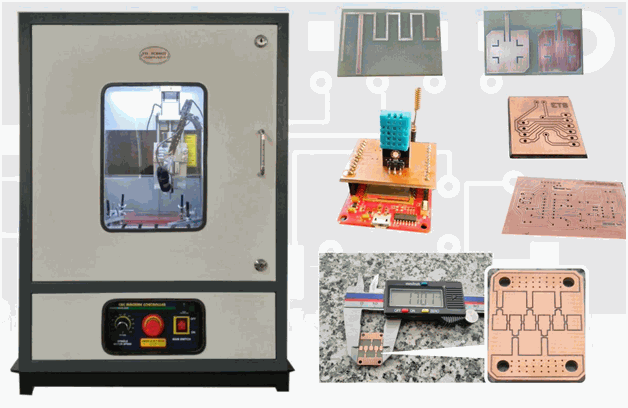

The PCBMATE 300 watts Prototype & Antenna fabrication machine is used to make a prototype PCB board. We can make Engraving, Hatching, Milling, Drilling, and Cutting. In this machine tools are changed by manual only. It's available in two various communication modes (Parallel port / USB mode). This machine is controlled by the CNC controller with Mach3 CNC software. Its working area is 220x330x120 mm. Its resolution 3.125 Micrometers.
| SPECIFICATION | ETS - PCBMATE® 300W |
|
PCB Prototyping & Antenna fabrication System
|
Manual
|
|
Software
|
Copper CAM & Mach3 Mill
|
|
Resolution (X/Y)
|
3.125 Micro Meter
|
|
Working Area (X/Y/Z)(mm)
|
200x300x120 mm
|
|
Minimum Width Line & Space in mm
|
0.1 (4 mil)
|
|
Max Travel Speed (mm/sec)
|
58 (2.28 “)
|
|
Drilling (mm)
|
0.2 -3.175 (8-125 mil)
|
|
Maximum Drilling Cycles/ Min
|
50
|
|
Main Axle Power Rate
|
300 W
|
|
Main Axle Rotating Speed
|
25000 RPM
|
|
Max working speed
|
3500mm/min
|
|
Feeding Height
|
120 mm
|
|
Working drive
|
0.02-0.05mm
|
|
Repositioning accuracy
|
0.01-0.02mm
|
|
Supported format
|
Standard Gerber,DXF,Excellon
|
|
Capability of Processing various materials
|
FR4, Copper clad, Acrylic, Metal, Aluminum and etc.,
|
|
Power
|
220 V AC
|
|
Weight
|
52 Kg
|
|
Accessories
|
Click here |
| Compare with other Models | Click here |
