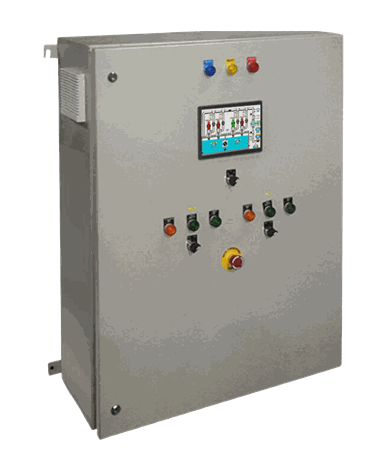

Automation System Panel with Energy Management
Make : EnthuTech
Brand: ETS IoT
Model: ETS IoT - EM
Product Description:
The ETS IoT – EM is an Automation System Panel with Energy Management designed for centralized monitoring and control of various parameters in Water Management Systems. This connects with LoRaWAN Gateway (ETS IoT – LOG) for localisation of data and automates the control of the Pump with data from other sources like Water Level Sensor even when there is a downtime in the cellular network.
This acts as both RS485 Mobus Master & Slave for effective Integration of two different system in a Modbus Network. Also, it has
an inbuilt HMI display for Monitoring of entire Water Management system functions and local control.
Salient Features:
▪ Centralized Control: Provides centralized control over various water management parameters.
▪ Real-Time Monitoring: Enables real-time monitoring of water levels, flow rates, and quality metrics.
▪ Automated Decision-Making: Utilizes advanced algorithms for autonomous decision-making based on predefined thresholds.
▪ Integration Capabilities: Seamlessly integrates with sensors, actuators, and control devices for compatibility and expandability.
▪ User-Friendly Interface: Offers an intuitive interface for easy interaction and analysis by operators.
▪ Fault Detection and Prevention: Includes built-in mechanisms for early fault detection and preventive measures.
▪ Customizable Configurations: Allows customization to meet specific project requirements and scalability needs.
▪ Data Logging and Reporting: Facilitates comprehensive data logging and reporting for analysis and compliance.
▪ Remote Accessibility: Enables remote monitoring and management for round-the-clock oversight.
▪ Energy Efficiency: Incorporates energy-efficient components to reduce operational costs and environmental impact.
▪ Protections: This Includes various programmable protections including Overvoltage, Undervoltage, Dry Run, and Voltage Failure.
Applications:
▪ Water Treatment Plants
▪ Wastewater Management.
▪ Industrial Facilities.
▪ Agricultural Irrigation
▪ Municipal Water Supply
▪ Smart Cities
▪ Remote Monitoring Stations
Product Certification and Compliances:
o WPC, CE, IEC 61131-3:2013, IEC 61131-5:2013,ISO/IEC 14882:1998, ISO/IEC 17025:2017, IEC 62053-21:2020
|
Component |
System Specifications |
|
|
Controller |
I/O’s |
4 I/Os |
|
Digital Input |
4 |
|
|
Protection against Polarity Inversion |
Yes |
|
|
Analog Inputs |
4 |
|
|
Resolution |
12bit |
|
|
Relay Output |
4 |
|
|
Analog Output |
2 |
|
|
Resolution |
14bits |
|
|
Memory |
64 MB |
|
|
RTC |
Yes |
|
|
Communication |
Modbus |
RS485 Slave & RS485 Master |
|
Transmissions speed |
9600, 19200, 38400, 57600, 115200 |
|
|
Data Bits |
7 or 8 |
|
|
Parity |
None, Even, odd, Space, Mark |
|
|
Stop bit |
1 or 2 |
|
|
Display |
Type |
Panel Mount |
|
Size |
7” Diagonal Resistive touch Screen |
|
|
Resolution |
800x480 pixels |
|
|
User Memory |
256M Flash+256M DRAM |
|
|
Data Logging |
Yes |
|
|
Comm. Port 1 |
RS485 MODBUS RTU protocol |
|
|
Comm. Port 2 |
RS232 MODBUS RTU protocol |
|
|
Comm. Port 3 |
RS485 MODBUS RTU |
|
|
USB Host |
USB 2.0 x1 |
|
|
USB Slave |
Type B, Program Download/upload |
|
|
Energy parameter |
Rated Input Voltage |
85 to 285V AC (L-N); 148-494AC (L-L) |
|
Current |
Ib: 500mA – 100A |
|
|
Frequency |
45 to 65HZ |
|
|
Accuracy |
Voltage (L - N ) : ± 0.5% for voltage & current, 0.1% for Frequency, 0.01% for PF, 1% for Power, Class 1 for Active energy, Class 2 for reactive energy |
|
|
Measuring parameters |
Voltage, Current, Frequency, Power factor, kWh |
|
|
Physical Characteristics |
Battery Backup |
12 Hours for HMI Display |
|
Operating Temperature |
0 ° to 50°C |
|
|
Power |
230V AC (90 - 270V AC) / 24V DC (±10%V DC) |
|
|
Panel Protection Clause |
IP65 |
|
