1. Products
  2. Industrial Sensor Node based on LoRaWAN®
INR
Industrial Sensor Node based on LoRaWAN®

Industrial Sensor Node based on LoRaWAN®

0.0 / 5

14,220.00 ₹ 14,220.00 ₹ 14220.0 INR

14,220.00 ₹

Option not available

    This combination does not exist.



    After sale Technical Support available at
    iotsupport@enthutech.in

    Qty Unit Price Ext. Price
    1.0 14,220.00 ₹ 14,220.00 ₹
    20.0 12,640.00 ₹ 252,800.00 ₹
    50.0 11,850.00 ₹ 592,500.00 ₹
    100.0 11,060.00 ₹ 1,106,000.00 ₹

    Introduction

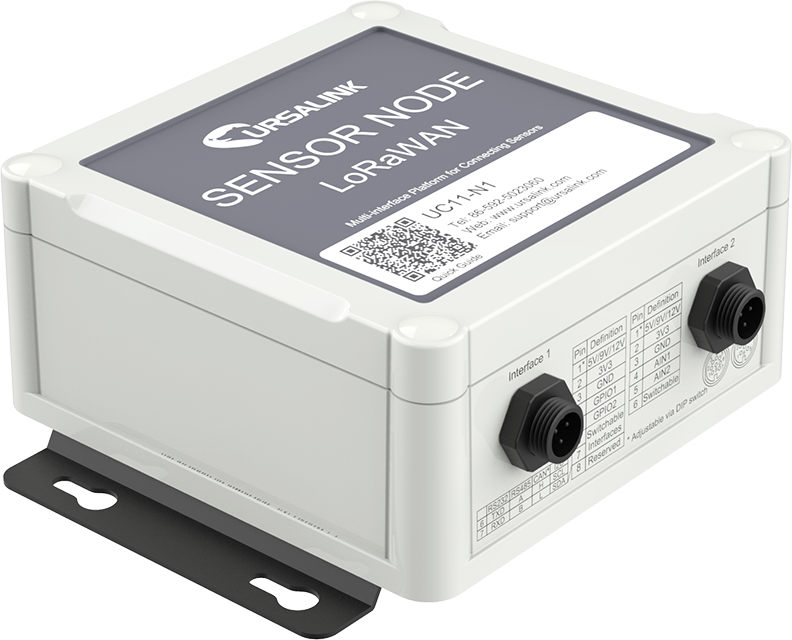

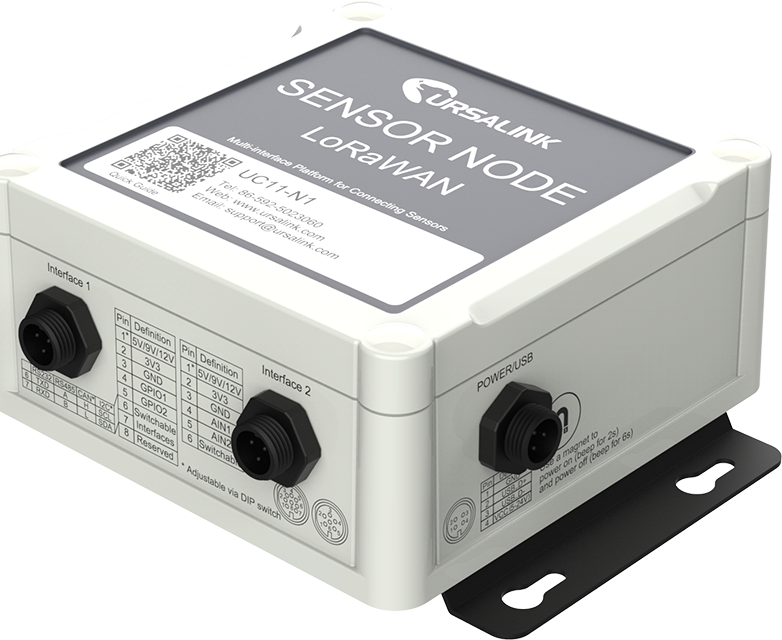

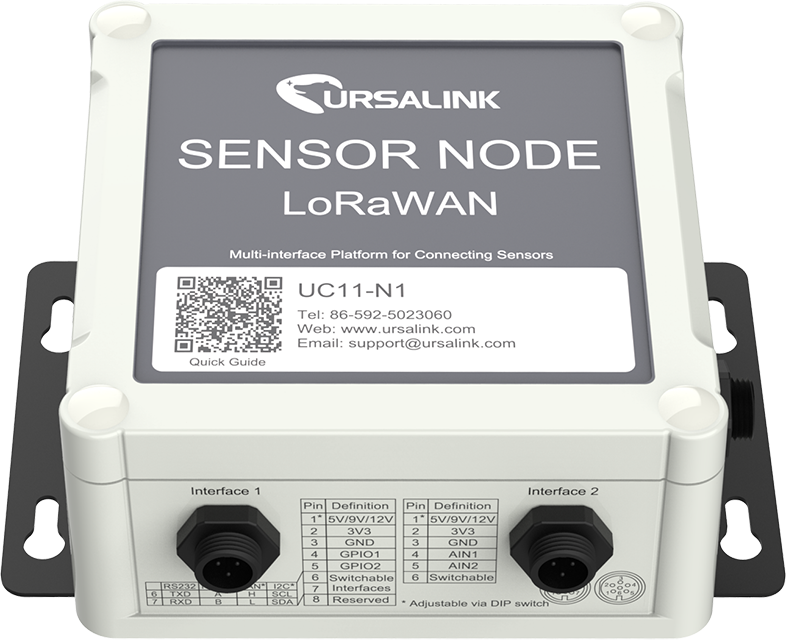

    The UC11-N1 is a fully integrated, battery-powered LoRaWAN® node with multiple communication interfaces for connecting to a wide range of external sensors. With quick installation and easy maintenance, the UC11-N1 is designed to work in harsh environments for remote monitoring and collecting data from sensors.

    Features

    ·         IP67 waterproof for harsh environments

    ·         Multiple interfaces including serial, I/O, CAN and I2C

    ·         Up to 11km communicate range - Standard LoRaWAN® v1.0/v1.0.2 protocol support

    ·         Ursalink Cloud compliant

    ·         Multiple power supply option: battery, DC or solar

    ·         5 years life under LoRaWAN® Class A mode

    Specification

                 LoRaWAN®



    Frequency

    EU433/CN470/IN865/EU868/US915/AU915/KR920/AS923

    Tx Power

    20dBm

    Sensitivity

    -147dBm @300bps

    Mode

    OTAA

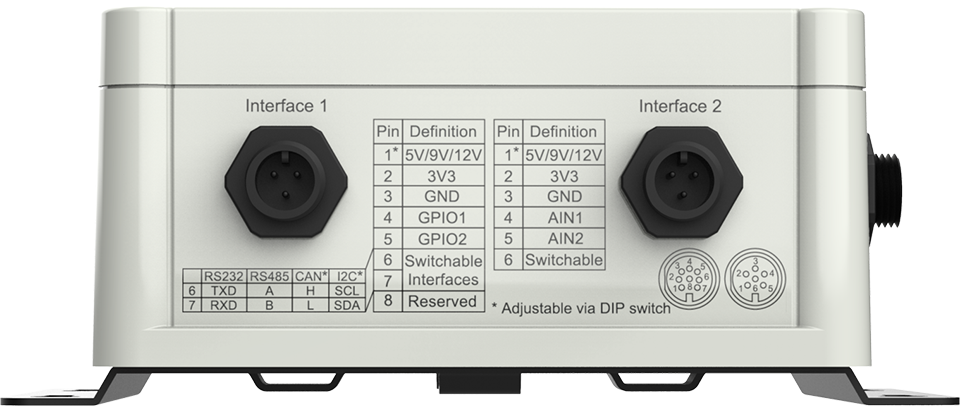

    Interface



    Interface 1

    2 × GPIO, 1 × RS232/RS485/CAN/I2C switchable 1 × 3.3 V output, 1 × 5/9/12 V output switchable

    Interface 2

    2 × Analog input, 1 × 3.3 V output, 1 × 5/9/12 V output switchable

    Physical Characteristics



    Operating Temperature

    -20°C to +70°C

    Ingress Protection

    IP67

    Dimension

    120.1 × 120.1× 55.4 mm (4.73 × 4.73 × 2.18 in)

    Power Input

    1. 19000mhA replaceable Li-SOCL2 battery

    2. 5-24 VDC with 4000mhA battery backup

    3. Solar powered with 8000mhA battery



    Datasheet: https://www.ursalink.com/en/download/uc11_n1_lorawan_sensor_node_datasheet_en.pdf
