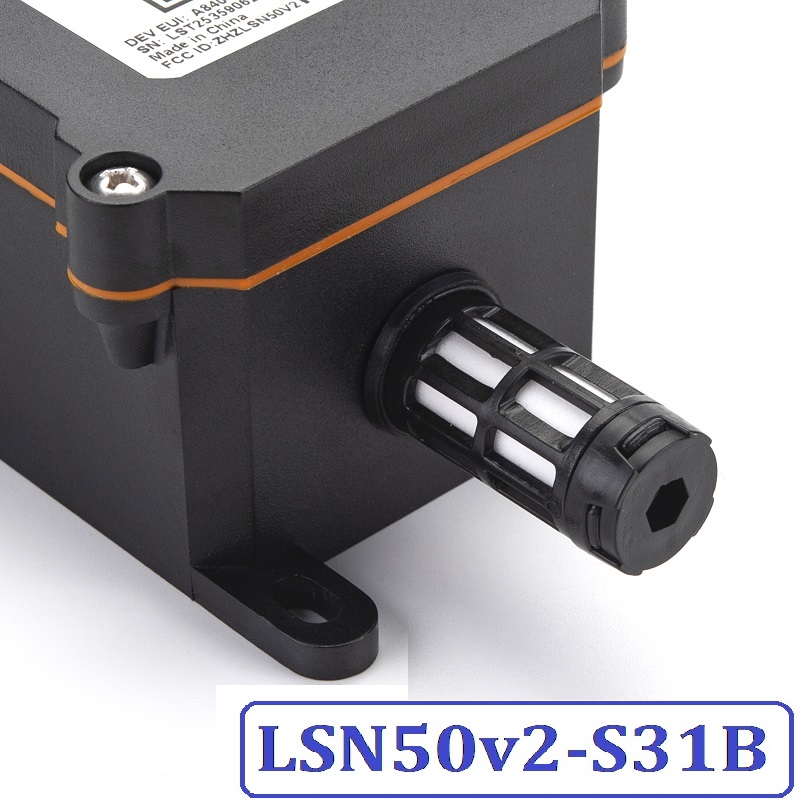

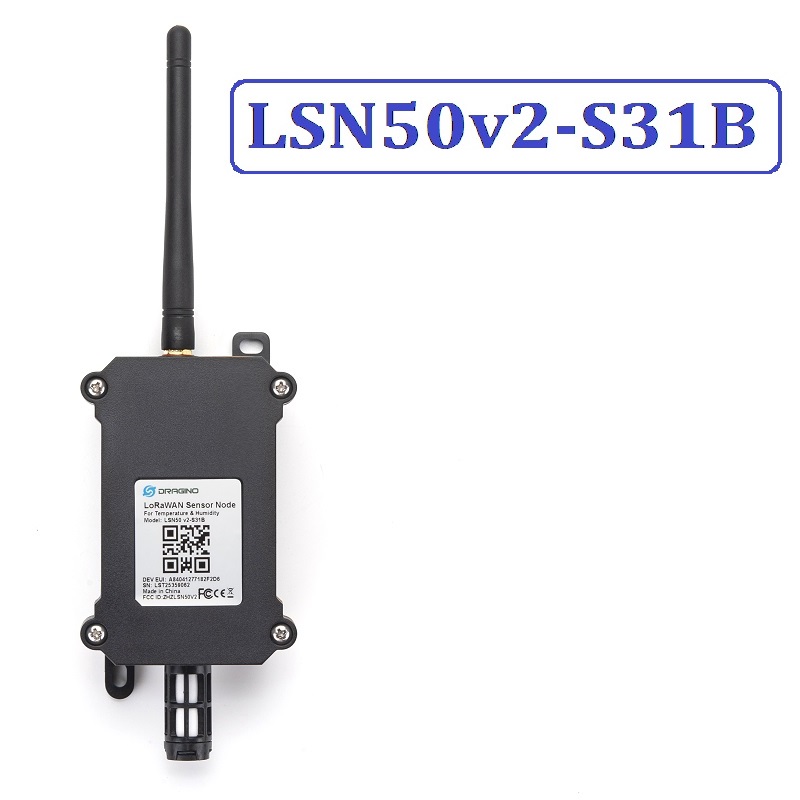

The Dragino LSN50v2-S31 is Temperature and Humidity Sensor based on LoRaWAN®for Internet of Things solution. It is used to measure the surrounding environment temperature and relative air humidity precisely, and then upload to IoT server via LoRaWAN® wireless protocol.

The temperature & humidity sensor used in LSN50v2-S31 is SHT31, which is fully calibratedlinearized, and temperature compensated digital output from Sensirion, it provides a strong reliability
and long-term stability. The SHT31 is fixed in a waterproof anti-condensation casing for long term use.

LSN50v2-S31 supports temperature and humidity alarm feature, user can get alarm for instant notice.

LSN50v2-S31 is powered by 8500mAh Li-SOCI2 battery, It is designed for long term use up to 10 years. (Actually Battery life depends on the use environment, update period.Please check related Power Analyze report).

Each LSN50v2-S31 is pre-load with a set of unique keys for LoRaWAN® registration, register these keys to local LoRaWAN® server and it will auto connect after power on.

Temperature Sensor:

  • Range: -40 to + 80°C
  • Accuracy: ±0.2 @ 0-90 °C
  • Resolution: 0.01°C
  • Long Term Shift: <0.03 °C/yr

Humidity Sensor:

  • Range: 0 ~ 99.9% RH
  • Accuracy: ± 2%RH ( 0 ~ 100%RH)
  • Resolution: 0.01% RH
  • Long Term Shift: <0.25 %RH/yr

Features:

  • LoRaWAN® v1.0.3 Class A
  • Ultra low power consumption
  • External 3m SHT31 probe
  • Measure range -40°C ~ 80°C
  • Temperature alarm
  • Available Bands: CN470/EU433/KR920/US915
    EU868/AS923/AU915/IN865
  • Default frequency band: IN865
  • AT Commands to change parameters
  • Uplink on periodically or Interrupt
  • Downlink to change configure

Applications:

  • Wireless Alarm and Security Systems
  • Home and Building Automation
  • Automated Meter Reading
  • Industrial Monitoring and Control
  • Long range Irrigation Systems,etc.

Package Includes:

  • 1 x LSN50v2-S31 LoRaWAN® Temperature & Humidity Sensor
