RS485 Modbus Converter for LoRaWAN®

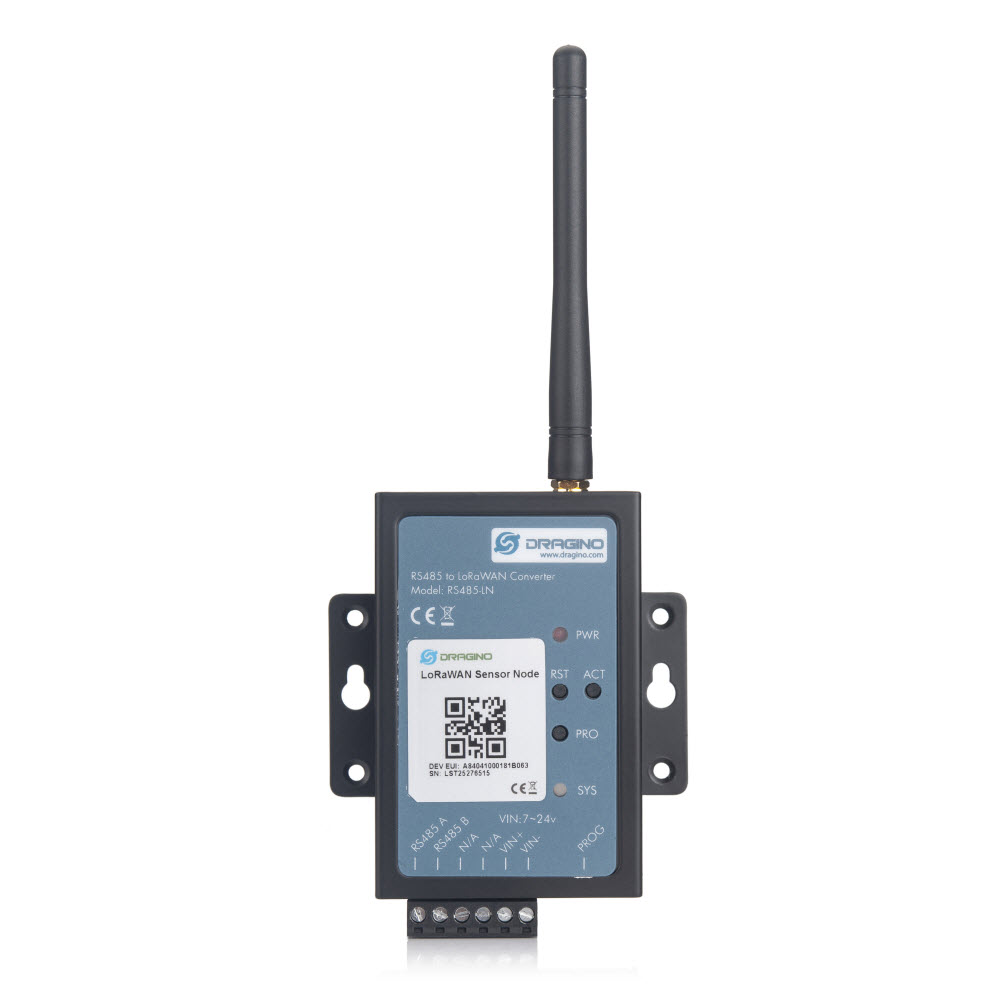

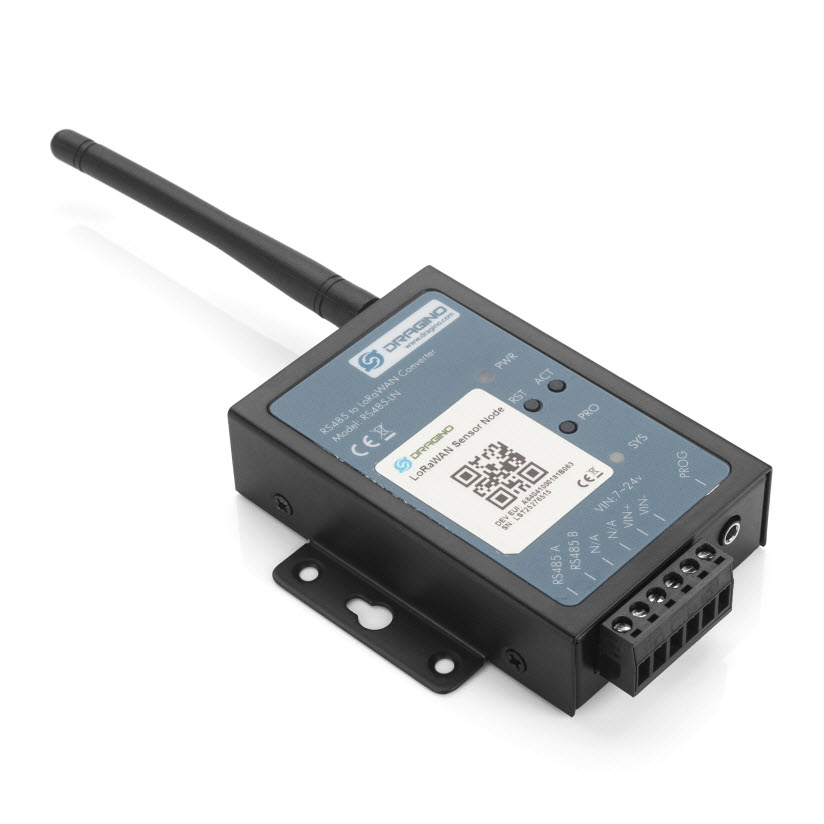

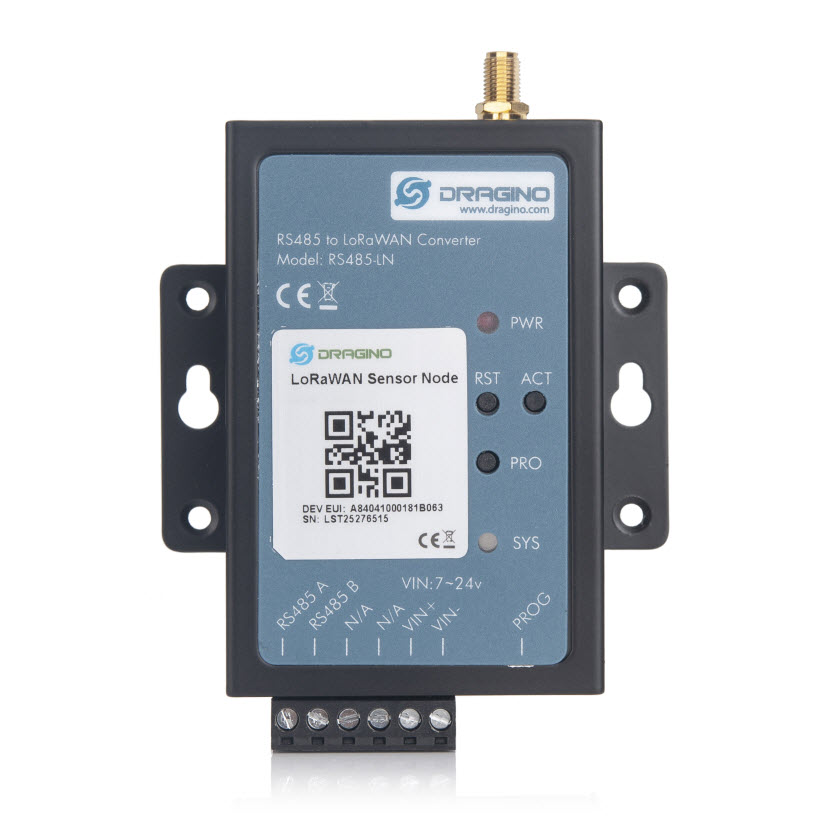

The Dragino RS485-LN is a RS485 to LoRaWAN^® Converter. It converts the RS485 devices into LoRaWAN^® wireless network which simplify the IoT installation and reduce the installation/maintaining cost.

RS485-LN allows the user to monitor / control RS485 devices and reach extremely long ranges. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption. It targets professional wireless sensor network applications such as irrigation systems, smart metering, smart cities, smartphone detection, building automation, and so on.

For data uplink: RS485-LN sends user-defined commands to RS485 devices and get the return from the RS485 devices. RS485-LN will process these returns according to the user-define rule to get the final payload to upload to LoRaWAN^® server.

For data downlink: RS485-LN runs in LoRaWAN^® Class C. When there downlink commands from LoRaWAN^® server, RS485-LN will forward the commands from LoRaWAN^® server to RS485 devices.

Package Includes:

• 1 x RS485-LN

• 2 x DIN holders

• 1 x LoRa^® Antenna

• 1 x program cable


Dimensions and Weight:

Device:

• Size:110 x 90 x 25 mm/pcs
• Weight: 210g

Package:

• Size:130 x 100 x 40 mm/pcs
• Weight: 255g

Note: Power Adaptor Not Included in this item but require 12V DC Power adaptor to power this device.

Prerequisites':
1. 12 V DC Adaptor
2. FT232RL TTL Converter with USB Cable
3. Male - Female Jumper wires
