NB-IoT Bee

0.0 / 5

2,790.00 ₹ 2,790.00 ₹ 2790.0 INR

4,410.00 ₹

Option not available

  • Varients

This combination does not exist.

Qty Unit Price Ext. Price
1.0 4,410.00 ₹ 4,410.00 ₹
20.0 3,920.00 ₹ 78,400.00 ₹
50.0 3,675.00 ₹ 183,750.00 ₹
100.0 3,430.00 ₹ 343,000.00 ₹

NarrowBand-Internet of Things (NB-IoT) is a standards-based low power wide area (LPWA) technology developed to enable a wide range of new IoT devices and services. NB-IoT significantly improves the power consumption of user devices, system capacity and spectrum efficiency, especially in deep coverage. Battery life of more than 10 years can be supported for a wide range of use cases.

New physical layer signals and channels are designed to meet the demanding requirement of extended coverage – rural and deep indoors – and ultra-low device complexity. Initial cost of the NB-IoT modules is expected to be comparable to GSM/GPRS. The underlying technology is however much simpler than today's GSM/GPRS and its cost is expected to decrease rapidly as demand increases.

Arduino is an open-source electronics platform based on easy-to-use hardware and software, it is an easy tool for fast prototyping, aimed at students without a background in electronics and programming. As soon as it reached a wider community, the Arduino board started changing to adapt to new needs and challenges, differentiating its offer from simple 8-bit boards to products for IoT applications, wearable, 3D printing, and embedded environments. All Arduino boards are completely open-source, empowering users to build them independently and eventually adapt them to their particular needs. The software, too, is open-source, and it is growing through the contributions of users worldwide.

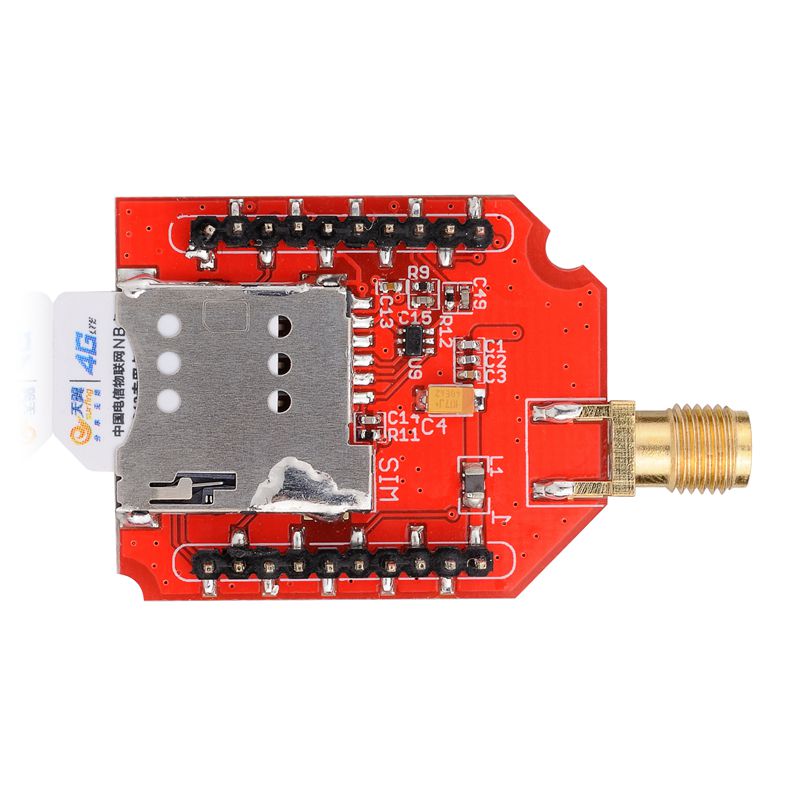

NB-IoT Bee is the core module for NB-IoT Shield, With NB-IoT Shield and Arduino, user can study/evaluate and do POC for NB-IoT solution rapidly. The NB-IoT Bee is in a small form factor. it can be used to build final product directly as well.

The NB-IoT Bee is loaded with offshore NB-IoT module. include:

  • Nb-IoT Bee QB05, QB08, QB20, they use Quectel BC95-B5 /B8 and B20 module. The module is designed for only use in NB-IoT network. and difference suffix reference to different NB-IoT Band. (These modules are discontinue. recommend to use NB-IoT Bee 95G as replacement)
  • Nb-IoT Bee 95G, it uses Quectel BC95-G module. This module is a global regions module can work on different operators.
  • Nb-IoT Bee QG96, it uses Quectel BG96 module. This module supports mutli-bands. Besides NB-IoT, It also support LTE Cat M1 & EGPRS

NB-IoT Bee - XXXX:

XXXX: Frequency Band

  • QB05: for B5:850Mhz
  • QB08: for B8:900Mhz
  • QB20: for B20:800Mhz
  • 95G: with BC95-G (Global Regions)
  • QG96: Cat M1, NB-IoT & EGPRS


  • Support global NB-IoT Bands, can use world widely
  • Low power consumption
  • Wide area coverage
  • AT command to control
  • Built-in micro SIM slot


  • Smart metering (electricity, gas and water)
  • Wireless Alarm and Security Systems
  • Home and Building Automation
  • Industrial Monitoring and Control
  • Long range Irrigation Systems,etc.

Specifications for NB-IoT Bee 95G

Frequency Bands:

  • B1 @H-FDD: 2100MHz
  • B3 @H-FDD: 1800MHz
  • B8 @H-FDD: 900MHz
  • B5 @H-FDD: 850MHz
  • B20 @H-FDD: 800MHz
  • B28 @H-FDD: 700MHz

LTE CatNB1 Connectivity:

  • 250mA @Radio Transmission, 23dBm (B1/B28)
  • 230mA @Radio Transmission, 23dBm (B3/B8/B5/B20)
  • 80mA @Radio Transmission, 12dBm (B1/B3/B8/B5/B20/B28)
  • 65mA @Radio Transmission, 0dBm (B1/B3/B8/B5/B20/B28)
  • 50mA @Radio Reception

Data Transmission:

  • Single Tone: DL:25.2kbps UL:15.625kbps
  • Multi Tone:DL: 25.2kbps UL:54kbps
  • Extended TBS/2 HARQ: DL: 125kbps UL: 150kbps

Protocol Stacks:

  • IPv4
  • IPv6
  • UDP
  • CoAP
  • LwM2M
  • Non-IP
  • DTLS
  • TCP
  • MQTT

Download Method:

  • UART

Enhanced Features:

  • DFOTA: Delta Firmware Upgrade Over-The-Air
  • RAI: Release Assistance Indication
  • ECID: Enhanced Cell ID
  • OTDOA: Observed Time Difference of Arrival



Specifications for NB-IoT Bee BG96

Frequency Bands:

    Cat M1/Cat NB1:
  • LTE FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/
  • LTE TDD: B39 (For Cat M1 Only)
  • 850/900/1800/1900MHz

Consumption @LTE Cat M1 (Typical):

  • Power Saving Mode: 10uA
  • Idle State: 15mA @DRX=1.28s ,  15mA @e-I-DRX=40.96s
  • Sleep State: 1.5mA @DRX=1.28s ,  1.2mA @e-I-DRX=40.96s
  • LTE Connected Mode (Avg.): 128mA @0dBm, 140mA @10dBm, 205mA @23dBm

Consumption @LTE Cat NB1 (Typical):

  • Power Saving Mode: 10uA
  • Idle State: 15mA @DRX=1.28s ,  15mA @e-I-DRX=40.96s
  • Sleep State: 1.96mA @DRX=1.28s ,  1.1mA @e-I-DRX=40.96s
  • LTE Connected Mode (Avg.): 96mA @0dBm, 110mA @10dBm, 223mA @23dBm
  • Sensitivity:
    -107dBm @Cat M1, 1.4MHz Bandwidth, CE Mode A
    -113dBm @Cat NB1, CE Level 0

Data Transmission:

  • Cat M1: Max. 375Kbps (DL), Max. 375Kbps (UL)
  • Cat NB1:  Max. 32Kbps (DL), Max. 70Kbps (UL)
  • EDGE: Max. 296Kbps (DL), Max. 236.8Kbps (UL)
  • GPRS: Max. 107Kbps (DL), Max. 85.6Kbps (UL)

Enhanced Features:

  • GNSS (Optional): GPS, GLONASS, BeiDou/Compass, Galileo, QZSS
  • Firmware Upgrade: via USB interface
  • DFOTA: Delta Firmware Upgrade Over the Air
  • Processor: ARM A7 Processor, with 3MB Flash and 3MB RAM Available for Users
  • Positioning Functions
