The Bee Module based on LoRaWAN® is a LoRa® module allows the user to send data and provides ultra-long range spread spectrum communication and high interference immunity whilst minimising current consumption.
Bee Module based on LoRaWAN® is based on the SX1276/SX1278 transceiver.LoRa® Bee targets professional wireless sensor network applications such as irrigation systems, smart metering, smart cities, smartphone detection,building automation, and so on.
This product can connect with the LoRa®/GPS Shield mother board to build a LoRa®/GPS Shield.
1 x LoRa® Bee

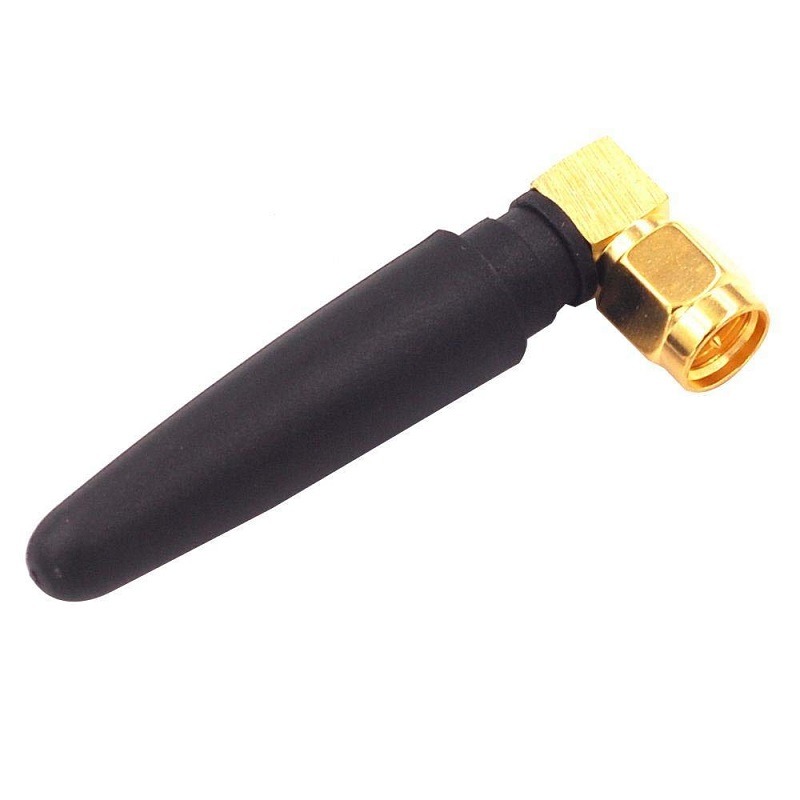

1 x Glue Stick Antenna(868 MHZ)
Environmental protection paper box
168 dB maximum link budget.
+20 dBm - 100 mW constant RF output vs.
+14 dBm high efficiency PA.
Programmable bit rate up to 300 kbps.
High sensitivity: down to -148 dBm.
Bullet-proof front end: IIP3 = -12.5 dBm.
Excellent blocking immunity.
Low RX current of 10.3 mA, 200 nA register retention.
Fully integrated synthesizer with a resolution of 61 Hz.
FSK, GFSK, MSK, GMSK, LoRa® and OOK modulation.
Built-in bit synchronizer for clock recovery.
127 dB Dynamic Range RSSI.
Automatic RF Sense and CAD with ultra-fast AFC.
Packet engine up to 256 bytes with CRC.
Built-in temperature sensor and low battery indicator.
Frequency Band: 868 MHZ/433 MHZ/915 MHZ(Pre-configure in factory)
